c50034-1-2 1-1/2 inch Floating Reamer Holder- With 1/2 inch Arbor Installed

JGS Precision

c50034-1-2 1-1/2 inch Floating Reamer Holder- With 1/2 inch Arbor Installed

Regular price $299.00

Out of stock

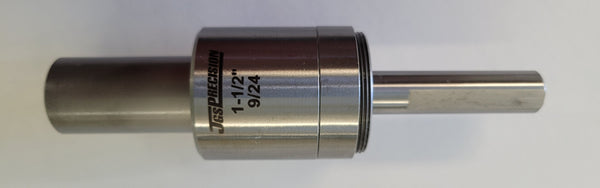

1-1/2 inch Floating Reamer Holder- With 1/2 inch Arbor Installed

Accommodate reamers with 7/16” diameter shanks

The new designs were developed to meet customer demands for a smaller design and
give more clearance to work better in CNC Machines. The new innovative drive shaft
eliminates ‘push out’ when it comes under tool load, unlike the side plates and ball
bearings in previous floating reamer holders. The seal area was redesigned to allow
more free floating.  It has two thrust bearings, front and back, to create a better
alignment to hold the reamer in horizontal alignment with the spindle. The outside
housing and lock ring design to allow for easier adjustments.  Standard runout from
center is .020
