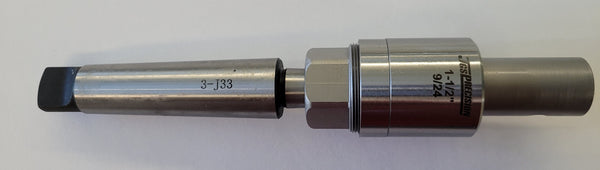

1-1/2 inch Floating Reamer Holder- Jacobs
Only 16 in stock
1-1/2 inch Floating Reamer Holder- Jacobs
The new designs were developed to meet customer demands for a smaller design and
give more clearance to work better in CNC Machines. The new innovative drive shaft
eliminates ‘push out’ when it comes under tool load, unlike the side plates and ball
bearings in previous floating reamer holders. The seal area was redesigned to allow
more free floating. It has two thrust bearings, front and back, to create a better
alignment to hold the reamer in horizontal alignment with the spindle. The outside
housing and lock ring design to allow for easier adjustments. Standard runout from
center is .020
The 1.5 Inch floating reamer holder accommodates reamers with 7/16" diameter
shanks. The rear of the holder has a female 33 Jacobs to use "off-the-shelf" shanks
just as the Jacobs chucks use. To adapt to your lathe, we stock #1-#4 J33 Morris
Tapers. Straight arbors are also available in sizes: 1/2", 5/8", 3/4" and 1".
Add an arbor to your cart and an immediate discount will be applied to make it free.
